Customizing a drawing sheet report table in SOLIDWORKS ELECTRICAL.

The creation of drawing sheets is an automation process. The drawing sheet already consists of every page detail as a report. In this blog we are about to know how to customize a report table details of that drawing sheet

STEP 1

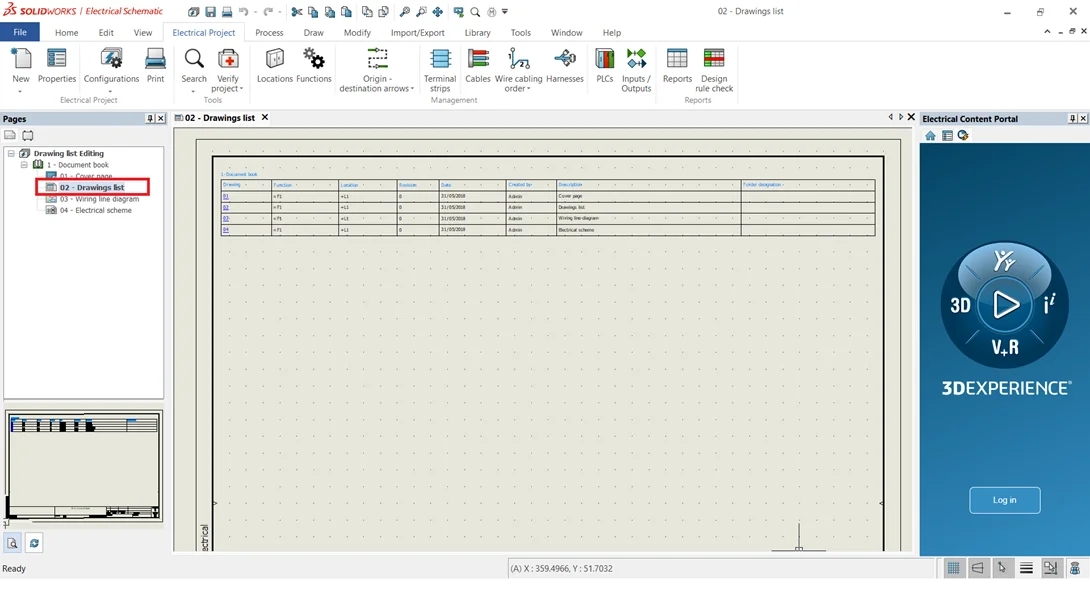

• In the display tree manager drawing sheet is the default page present as a second page after the cover page.
• Drawing sheet table will be useful to find the page information.
• Even if the 100 pages available every page information will be present in this page table.

STEP 2

• As per the image below.

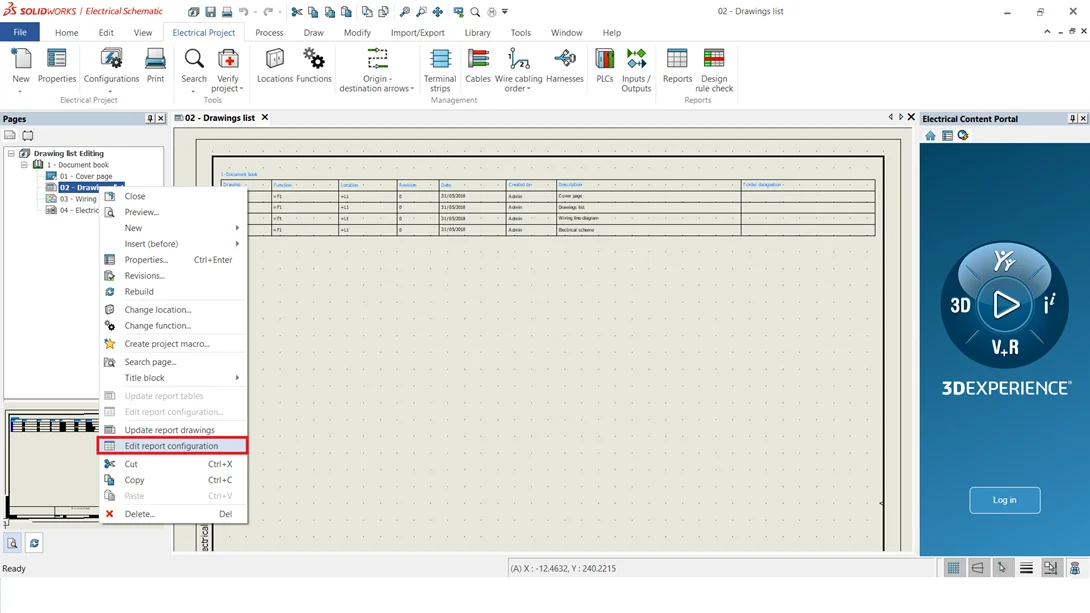

• To customize the report in a page, right click at page -> Edit report configuration.

STEP 3

• Once the above points are done a new tab Report configuration edition tab will be opened.
• In this tab where column adding, width height modifying is done.

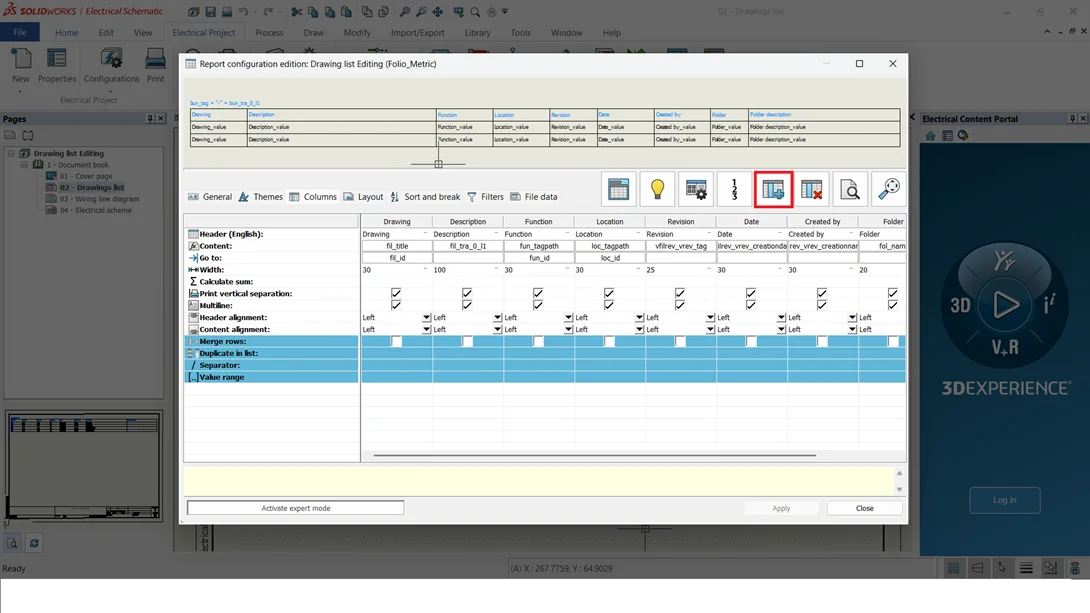

• To add a column a new adding option will be present which is highlighted
• in the image below.

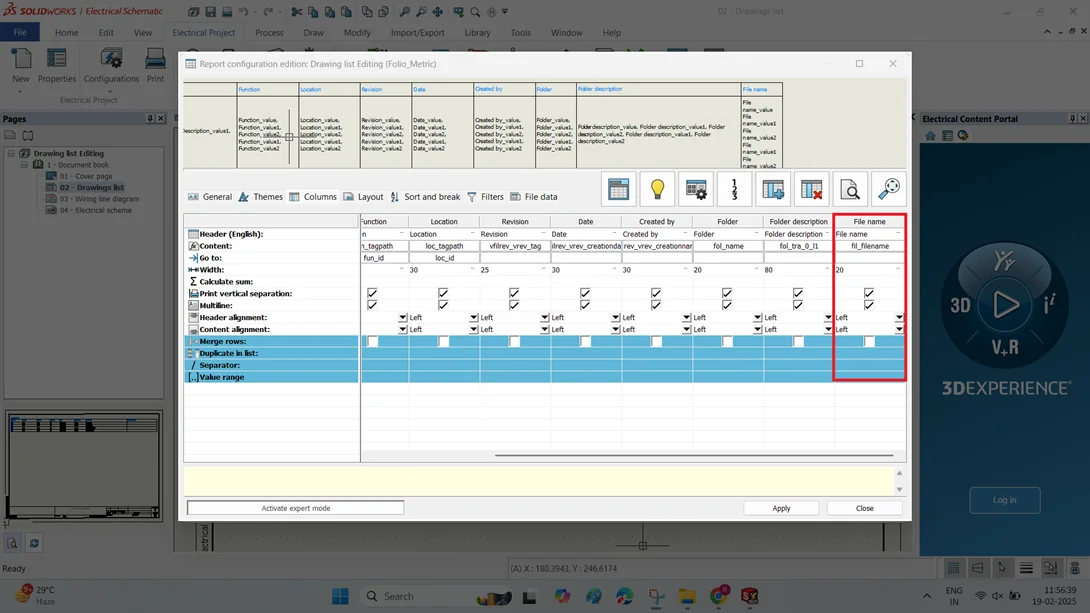

• The second image shows once column added how it represents.

STEP 4

• After creating a column with the above points, a column properties will be opened.

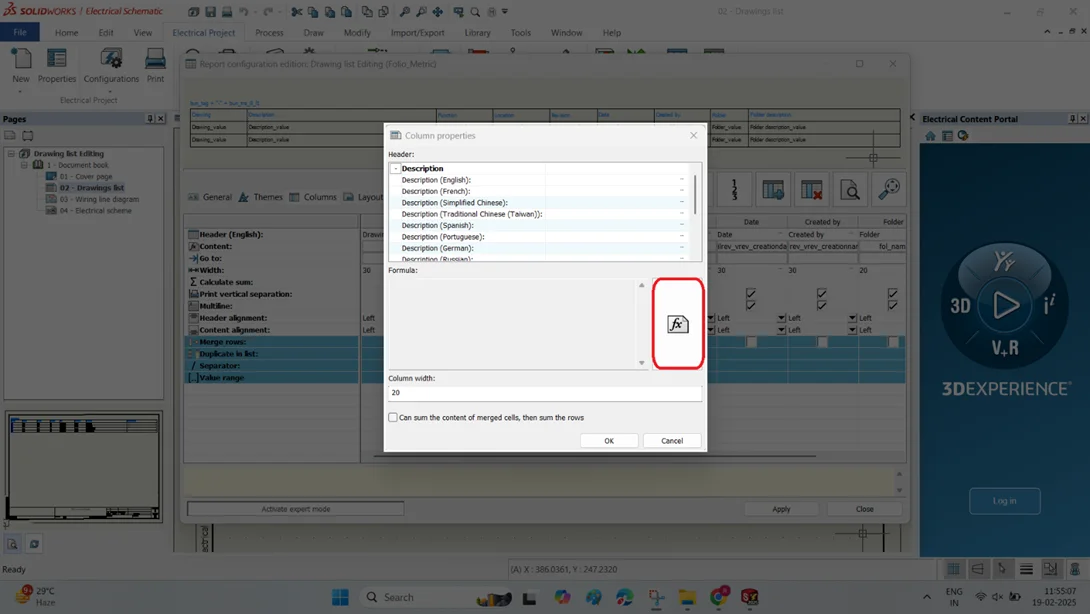

• In the column properties a formula must be added. To add a formula Highlighted option must selected.
• Second image represents after the formula added.

STEP 5

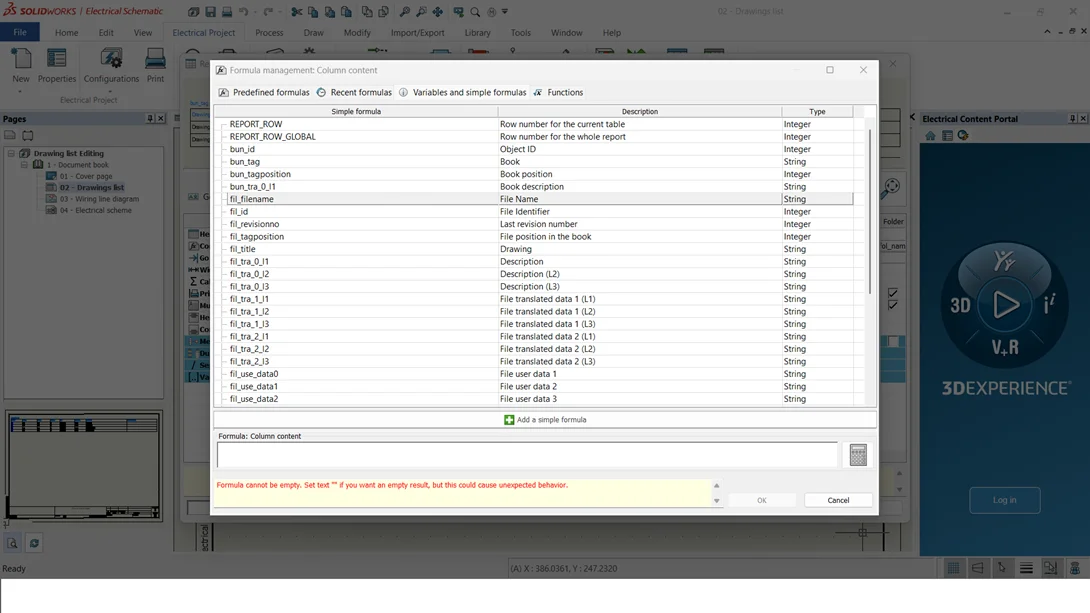

• Once the above points are done a formula management tab for a column context will be opened.
• It has multiple variables, formulas and functions. A required function has to be selected.

STEP 6

• And a function selected an update is needed to change the report in the drawing sheet.

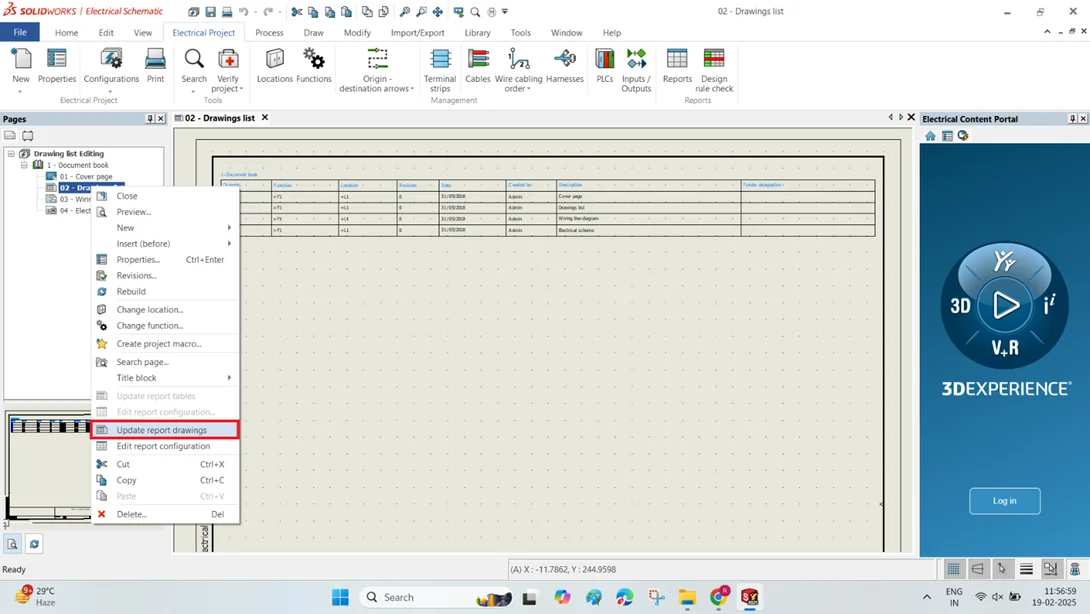

• To update the drawing sheet right click -> Update report drawings must be selected like in the image.

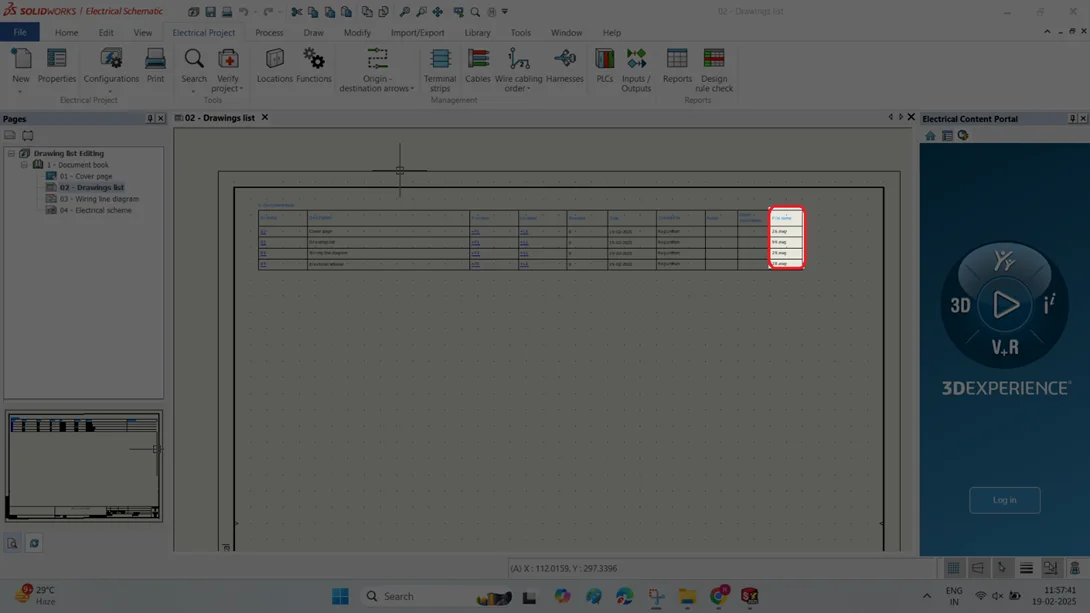

• The second image shows once updating done a new column is added.

Summary

• With these above-mentioned points we will be able to customize a new report table on the drawing sheet as per our requirement.
• Once these points are completed reports will get auto updated once solidworks electrical pages created.
